Thermal Grizzly DeltaMate Rotary - 90° Black

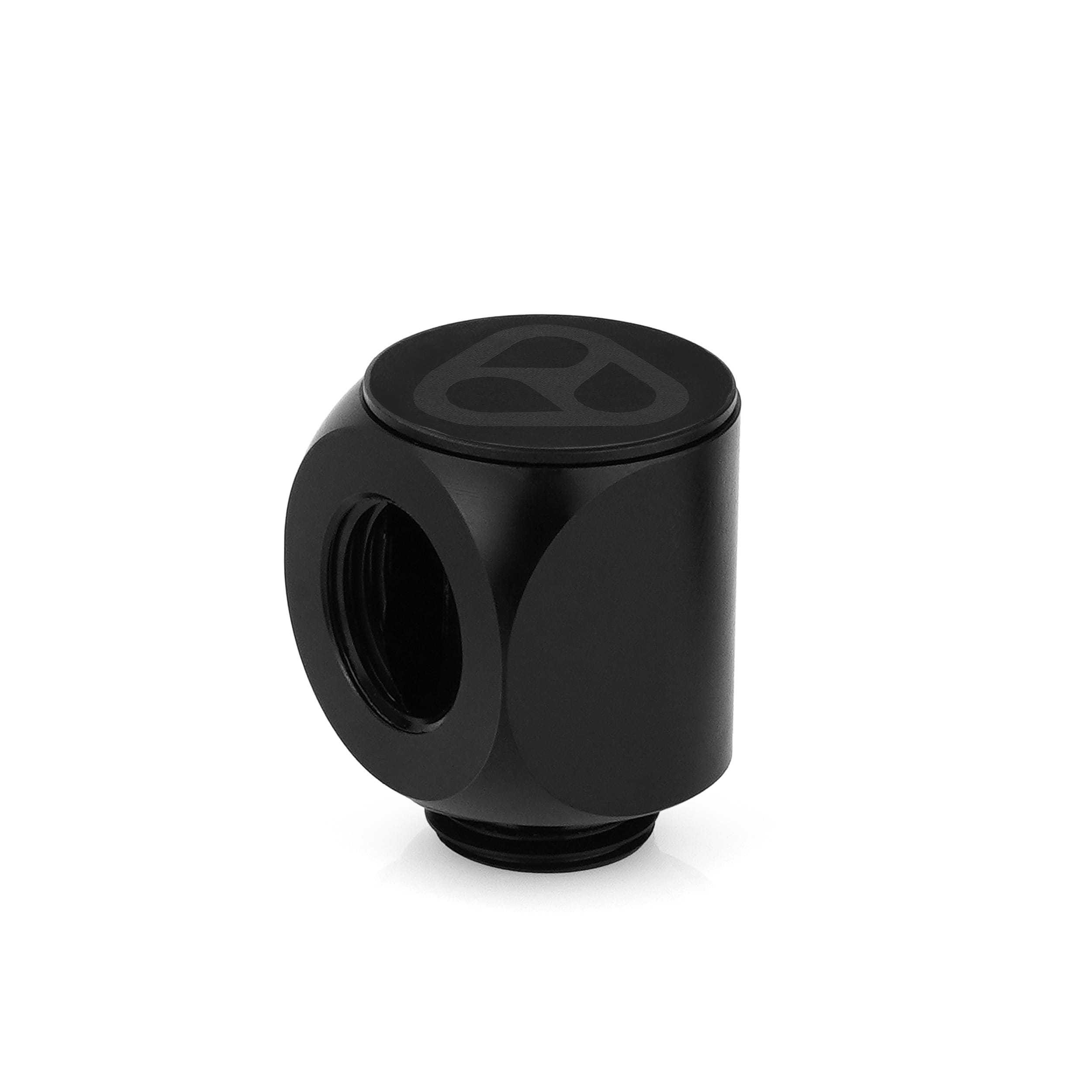

The Thermal Grizzly DeltaMate Rotary - 90° in black is a high-quality, rotatable fitting specifically developed for custom water cooling to simplify tube routing and optimize design. Machined from solid brass, an alloy of copper and zinc, this fitting is not only harder and more corrosion-resistant than pure copper, but it is also anodically compatible with other metals in the cooling loop.

For a permanently tight seal, the sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber). This material is particularly elastic and resistant to ozone and UV radiation, which guarantees long-lasting reliability. The robust fitting is easy and secure to install with an 8mm hex key, making it ideal even for tight spots and compact SFF (Small Form Factor) builds.

The DeltaMate Rotary - 90° features both a G1/4-inch male and female thread. Its compact dimensions allow for modular combination with other DeltaMate rotary and extender fittings, enabling flexible design of the cooling loop. For maximum safety, the swivel joint is mechanically locked when other fittings are mounted.

An optional, rotatable cover cap with the DeltaMate logo is included, which serves as an aesthetic upgrade and can be turned in any orientation. The consistent outer diameter of all DeltaMate connectors ensures seamless and elegant integration into your entire water cooling system.

Product Features

Material: CNC-machined brass with a matte black chrome coating
Threads: G1/4-inch male and female threads
Function: 90° rotatable fitting for flexible tube routing
Safety: Mechanical locking of the swivel joint when other fittings are mounted
Installation: Requires an 8mm hex key
Seals: EPDM (ethylene propylene diene rubber)
Special Feature: Includes an optional, rotatable cover cap and a consistent outer diameter

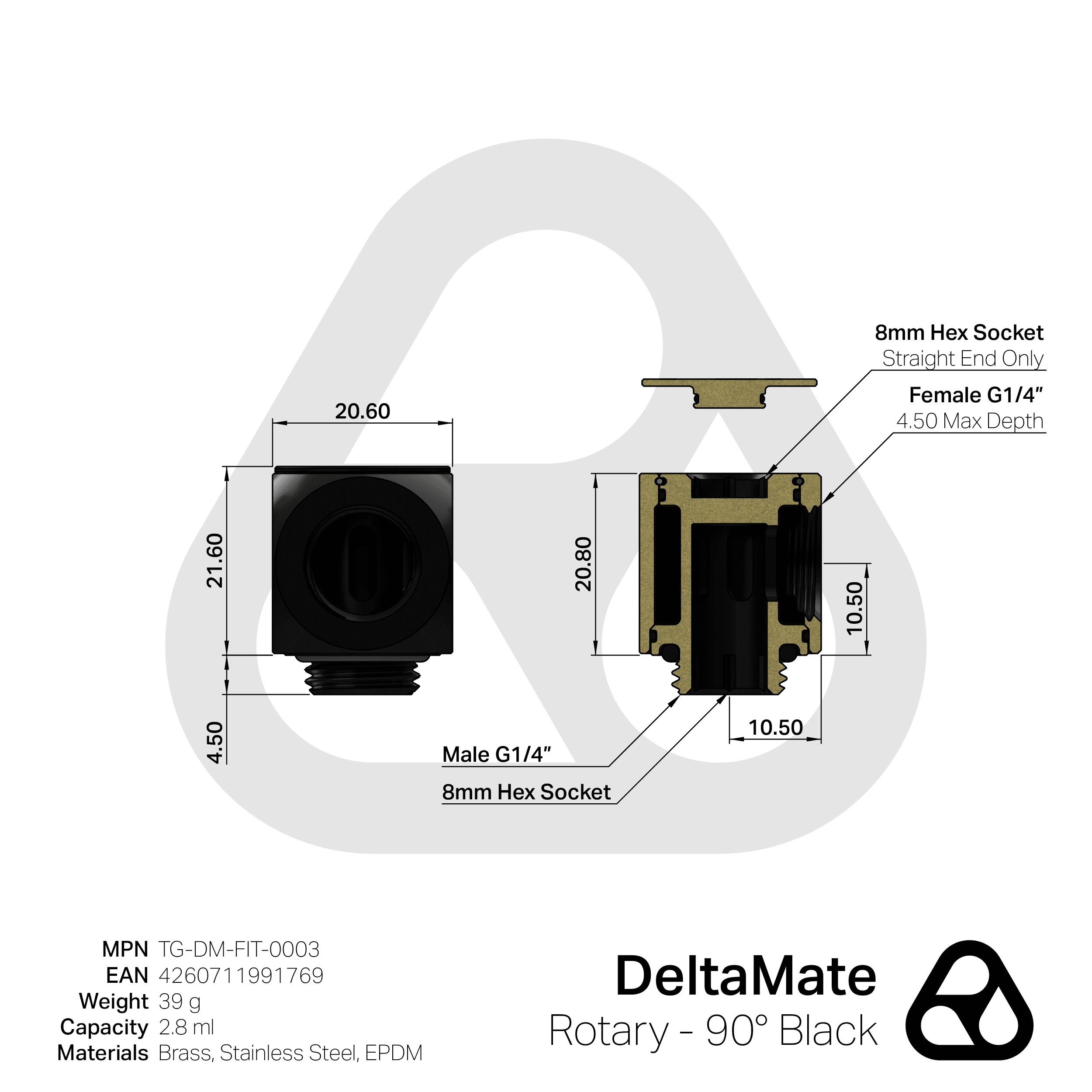

Note: Maximum thread depth of 4.5 mm. A straight-ended 8mm hex key is required for mounting.

Produktdetails

Productnr.:	1027242
Fabrikantnr:	TG-DM-FIT-0003
EAN:	4260711991769
Gewicht:	0,04 kg
Beschikbaar:	Er zijn nog meer dan 25 artikelen beschikbaar

Fabrikant:	Thermal Grizzly;
2. Pagina:	G1/4" buitendraad
Draaibaar:	Ja - 360°
Kleur:	Zwart
Specificatie:	Vorm: 90° gebogen
1 pagina:	G1/4" binnendraad
