ANK EK Water Blocks EK-Pro Manifold 2CPU 2GPU - Acetal

d'acqua ANK EK EK-Pro Collettore 2CPU 2GPU - Acetale

Questo prodotto sarà rilasciato il 01 luglio 2025

Possibilità di rateizzazioni tra 99€ e 5.000€ di merce

222 I visitatori mostrano interesse

0 I clienti hanno acquistato recentemente questo prodotto.

84,89 € *

Prezzi incl. IVA più spese di spedizione

Informatemi non appena il prodotto è nuovamente disponibile.

Blocchi d'acqua ANK EK EK-Pro Collettore 2CPU 2GPU - Acetale

84,89 € 0,00 € Prezzi incl. IVA più spese di spedizione

EK-Pro Manifold 2CPU 2GPU Compact Coolant Distribution System for Dual CPU and GPU... altro

Chiudi menu

Informazioni sul prodotto

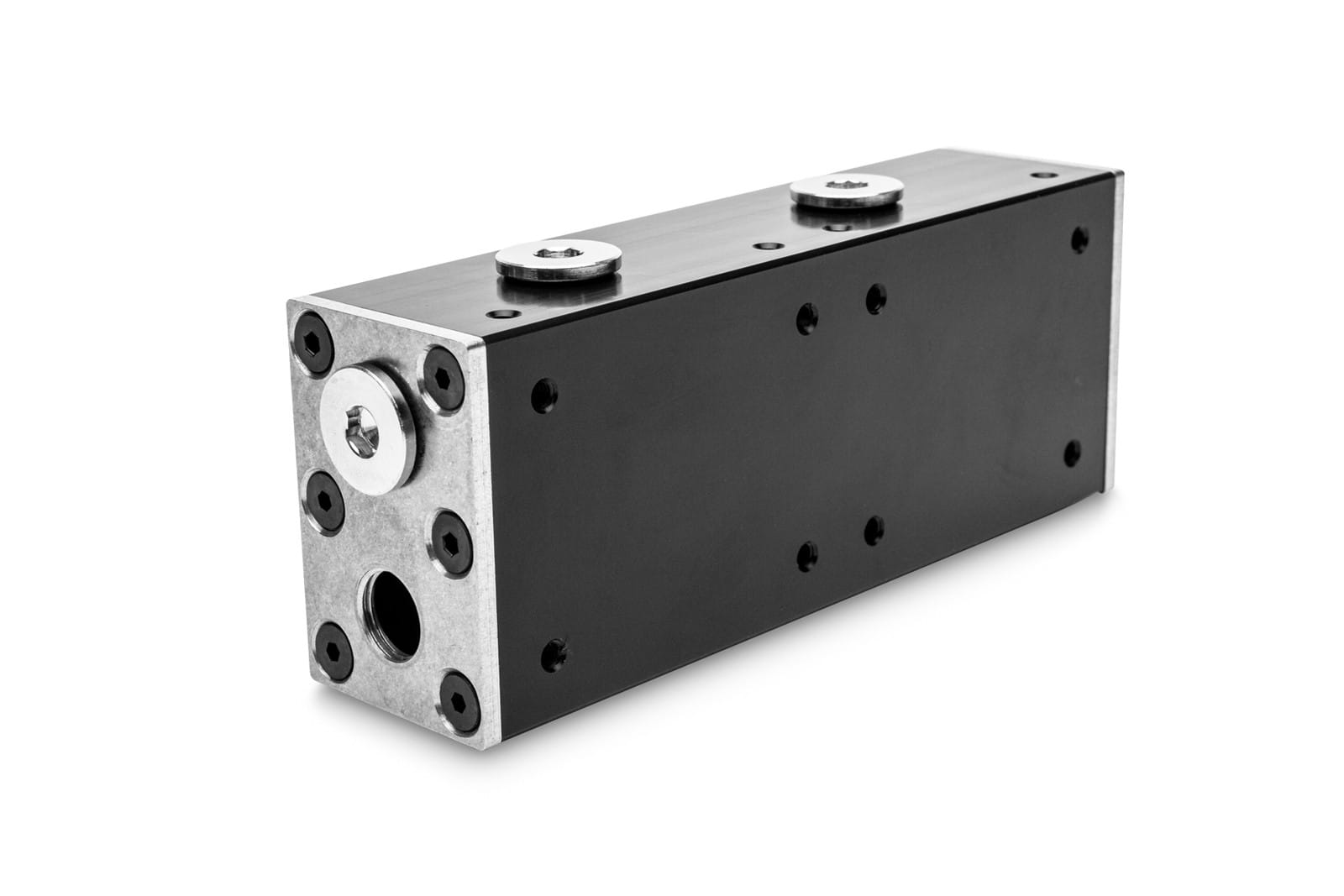

EK-Pro Manifold 2CPU 2GPU

Compact Coolant Distribution System for Dual CPU and GPU Workstation Cooling

The EK-Pro Manifold 2CPU 2GPU is a purpose-built coolant routing solution for professional workstations requiring up to two CPU and two GPU water blocks. It supports both parallel and semi-parallel loop configurations, providing efficient coolant delivery in a compact form factor.

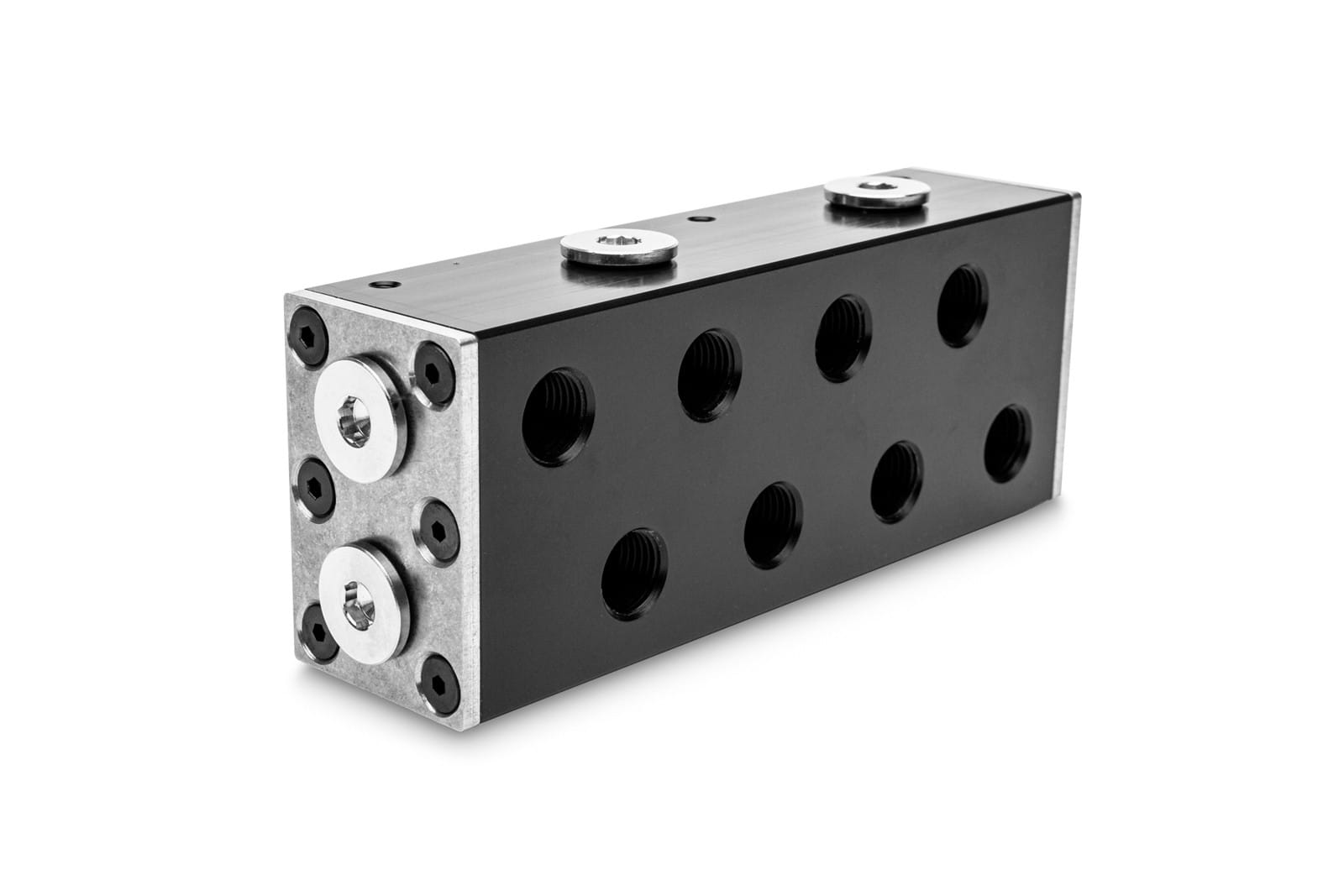

With eight G1/4” threaded ports, the manifold is engineered for smaller setups while maintaining robust performance. It comes pre-assembled and ready for semi-parallel operation out of the box.

The unit features a POM acetal body, stainless steel end caps, and nickel-plated brass fittings, offering excellent reliability and durability even under constant operation.

For best flexibility and ease of maintenance, EK recommends using the manifold with EK-Pro Quick Disconnect Kits (QDC) for CPU and GPU (sold separately). These allow for component swaps without draining the loop, reducing downtime in productivity-critical systems.

⚠️ Note: Only 7 G1/4” plugs are included. Additional plugs are required for unused ports and sold separately.

Technical Specifications:

Dimensions (L × H × W): 146 × 57 × 36 mm (without mounting system)
Materials: POM, stainless steel, nickel-plated brass
Weight: 0.449 kg
Ports: 8 × G1/4” – supports 2 CPUs and 2 GPUs
Mounting method: Manifold bracket with 120/140 mm fan hole compatibility
Working pressure: 2,500 Pa
Maximum working pressure: 30,000 Pa (with EK-Pro Pump Reservoir Manifold), otherwise 75,000 Pa
Operating temperature range: 5 – 60 °C
Origin: Made in Slovenia – EU

Enclosed:

EK-Pro Manifold 2CPU 2GPU
7 × G1/4” plugs
1 × Allen key 6 mm
1 × Allen key 2.5 mm
1 × Mounting bracket
4 × M4 × 6 mm screws (DIN7984)

Produktdetails

Numero Ordine:	1026631
N. produttore:	3831109813492
EAN:	3831109813492
Peso:	0,449 kg
Disponibile:	Al momento non disponibile

Produttore:	Blocchi d'acqua EK
Materiale:	Acciaio inossidabile, Ottone placcato al nickel, POM
Connessione:	Filettatura interna G1/4".
