Phobya DC12-400 12Volt Pump

  • 49071
  • 49071
  • 4049469080501
  • 0,618 kg
  • Unfortunately out of stock

More is on the way

Payment by instalments available between 400€ and 5000€ value of goods

€54.98 *

Prices incl. VAT plus shipping costs

This product is currently not available.
Please inform me as soon as the product is available again.

I have read the data protection information.

The new Phobya pumps: A revolution begins! After the first products the... more
Product information

The new Phobya pumps: A revolution begins!

After the first products the manufacturer consortium Phobya now introduces a pump series which rattles the cages in the performance-pump sector. This product perfectly combines all the requirements from different watercooling users:

Quiet: At less than 25dB even most fans in the system emit more noise. For decoupling and therefore further noise reduction two kits are included with the pump: The first a map for quick and easy mounting on the case floor. The mat is self-adhesive on both sides and therefore reliably fixates the pump. The second possibility for pump installation are two brackets with which the pump can be fixated in the case.

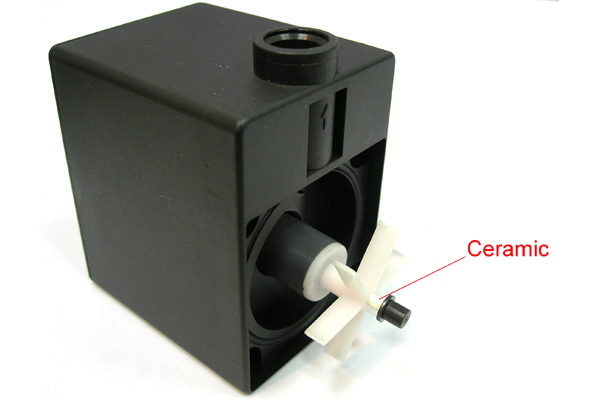

A ceramic-based centrifugal bearing promises quiet operation and a long lifespan.

Compact: With the small outer dimensions (see technical specifications) the pump can be installed in almost any corner of the case, even in Midi- or Mini-towers. The compact dimensions of the pump also make connection to the cooling loop easy as the pump's position can easily be varied.

Powerful: Such a small and quiet pump so far always required compromises regarding the power. Not anymore! 4m of pressure head and 800l/h of flow are the kind of performance that will not be stopped even by cooling loops even with multiple waterblocks.

G1/4" connection: No adaptors, no annoyingly long connectors any more! Simply screw in the desired connector and you are set to go!

12V connector: The first advantage of a 12V connector is that it makes the connection with a 230V cable obsolete and that internal operation is made safe and easy. The other great feature of this pump is the connector: It is not a standard 4-Pin Molex connector, it is a 3-Pin fan connector which powers this pump (Important: Check the requirements and capabilities of the sockets to which you connect the pump). This pump can therefore be operated at a fan connector on a Mainboard or a fan controller. This also allows a speed reduction of the pump: Only 8V are required for starting and operation of the pump which makes it additionally quiet and smooth in operation. The fan connector also offers the advantage of rpm monitoring with a compatible controller.

Technical specifications:
Color: Black
Casing material: Plastic
Outer dimensions: (L x W x H): 75 x 66 x 54mm
Connection thread size: G1/4"
Power connector: 3-Pin
Nominal operating voltage: DC 12V
Starting voltage: DC 8V
Power consumption: 18W
Current draw: 1.8A
Max. pressure head: 4m
Flow rate: 800 l/h
Lifespan: 50.000hrs
Noise emission: below 25 db

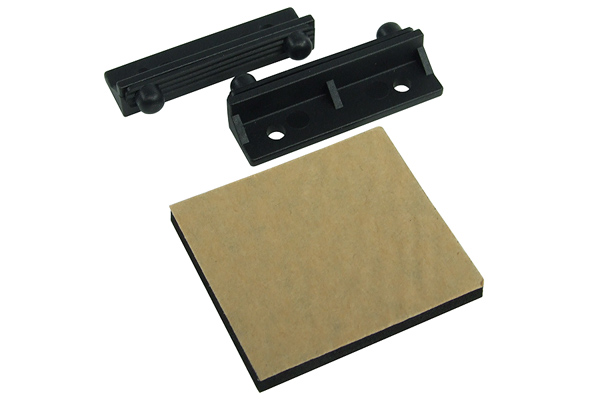

Extent of delivery:
1x Pump
Decoupling mat
Decoupling bracket with 2x 4mm holes

This product has been reviewed for you:
Aquainfos
Freezelabs (NO)
Xpert-OC-Team
Awardfabrik
Mega-Labs (GR)
Itrend (DK)
Coolingtechnique (IT)
Freeocen
Hardware-academy
Hardwaremax
Xtremehardware (IT)
Xtremehardware (Engl)
Topzone (LT)
Xtremesystems (Engl) (Userreview)
Hardwareluxx (Userreview)
Octeamdenmark (DK)
Hardmodding (pt) (User review)
Deviceunknown
(us/engl)



Further links

Jetzt nützliche Details ansehen... more
Produktdetails
voltage: 12V DC
Zugelassene Flüssigkeiten: Wasser, Wasser/Glykol-Gemisch
Maximale Systemtemperatur: 35°C
Farbe: schwarz
Maximaler Durchfluss: 800 l/h, Highflow (500 bis 1400 l/h)
Material: Kunststoff
power connection: 3Pin Molex
Wassereinlass: G1/4" Innengewinde
Wasserauslass: G1/4" Innengewinde
lifespan: 50.000 h
Manufacturer: Phobya
Leistungsaufnahme: 18W
Maximale Förderhöhe: 4m, Extrem (größer 4m)
Dimensions: 75 x 66 x 54mm
volume: 25 dB(A)
