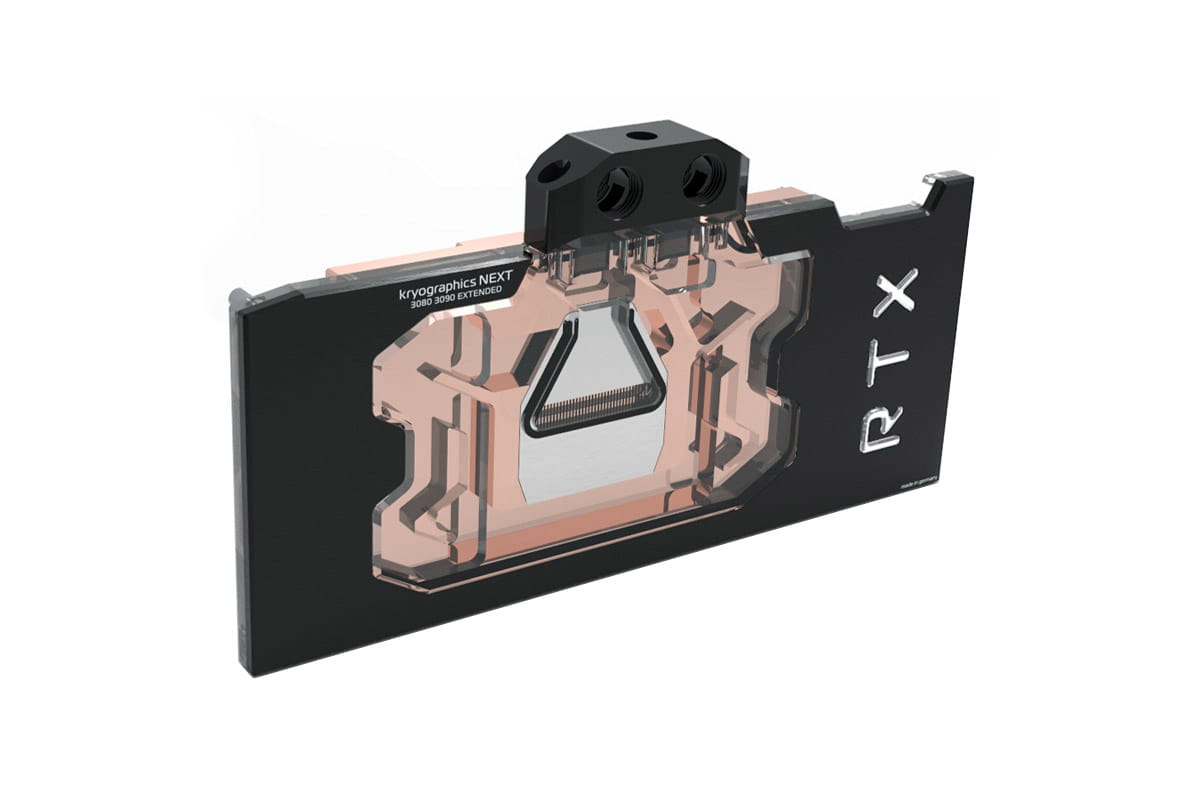

Aquacomputer kryographics NEXT RTX 3080 Extended / RTX 3090 Extended

Full cover water block for NVIDIA RTX 3080 and RTX 3090 graphics cards according to reference design with wider PCB dimensions.

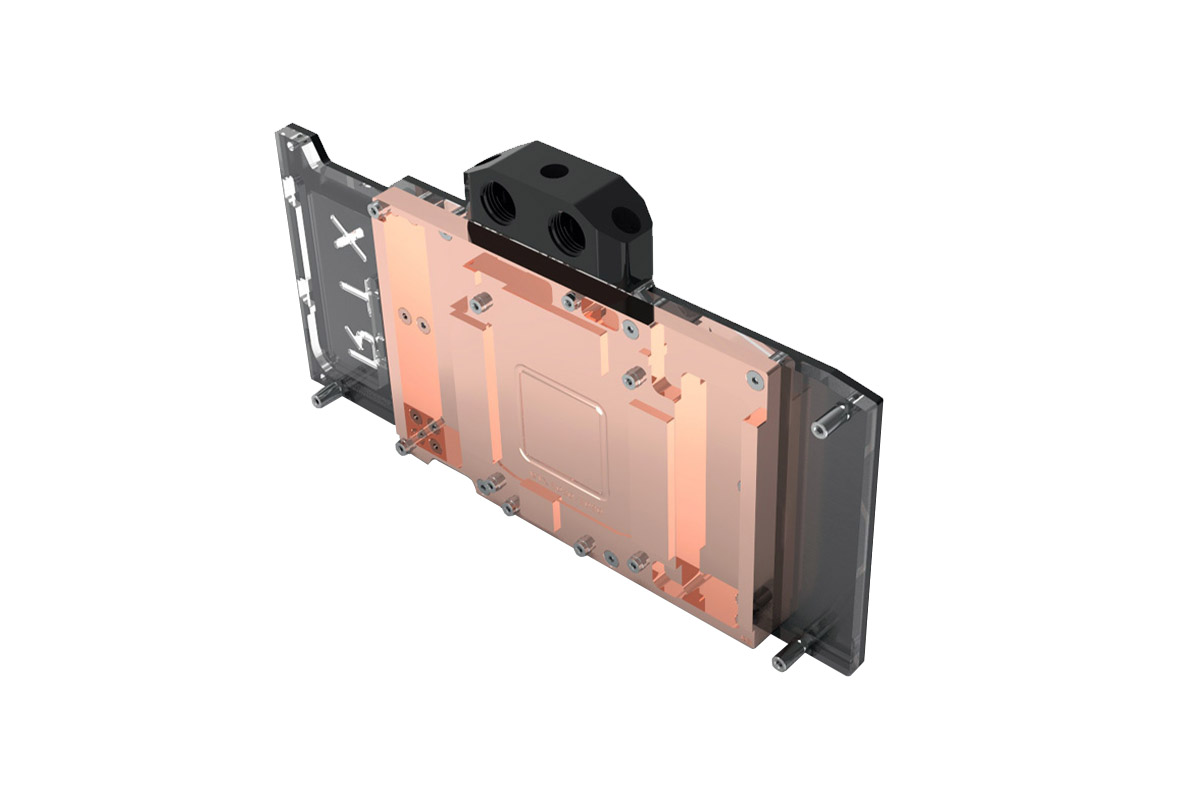

Manufactured from a massive block of copper, the base of the water block covers all relevant heat sources. In the GPU area, a jet plate made from stainless steel assures maximum cooling performance, while wide coolant channels in other areas guarantee minimum flow resistance.
The top is manufactured from acrylic glass, reinforced by a black anodized aluminum frame. Fifteen individually addressable RGBpx LEDs are integrated into the water block and can be connected to an Aqua Computer device with RGBpx output or to a motherboard with a compatible output.

The kryographics NEXT series retains established features of the kryographics series:

• Mirror finish for relevant contact areas.
• Direct contact to GPU and RAM, high quality thermal pad included for further components such as voltage regulators.
• All mounting threads are equipped with metal spacers for easy installation.
• Inlet and outlets ports with G1/4 thread, can be used from both sides. Two sealing screws included.
• Interchangeable connection terminal.
• Full compatibility to kryographics connection terminals with VISION module and kryoconnect SLI connectors.

Compatible products for integrated RGBpx illumination:

• All Aqua Computer products with RGBpx output
• Various motherboards with connector for addressable RGB LEDs

Materials:

• Base part: Copper
• Top cover: Acrylic glass
• Frame: Aluminum, anodized
• Jet plate: Stainless steel
• Terminal: Acetal

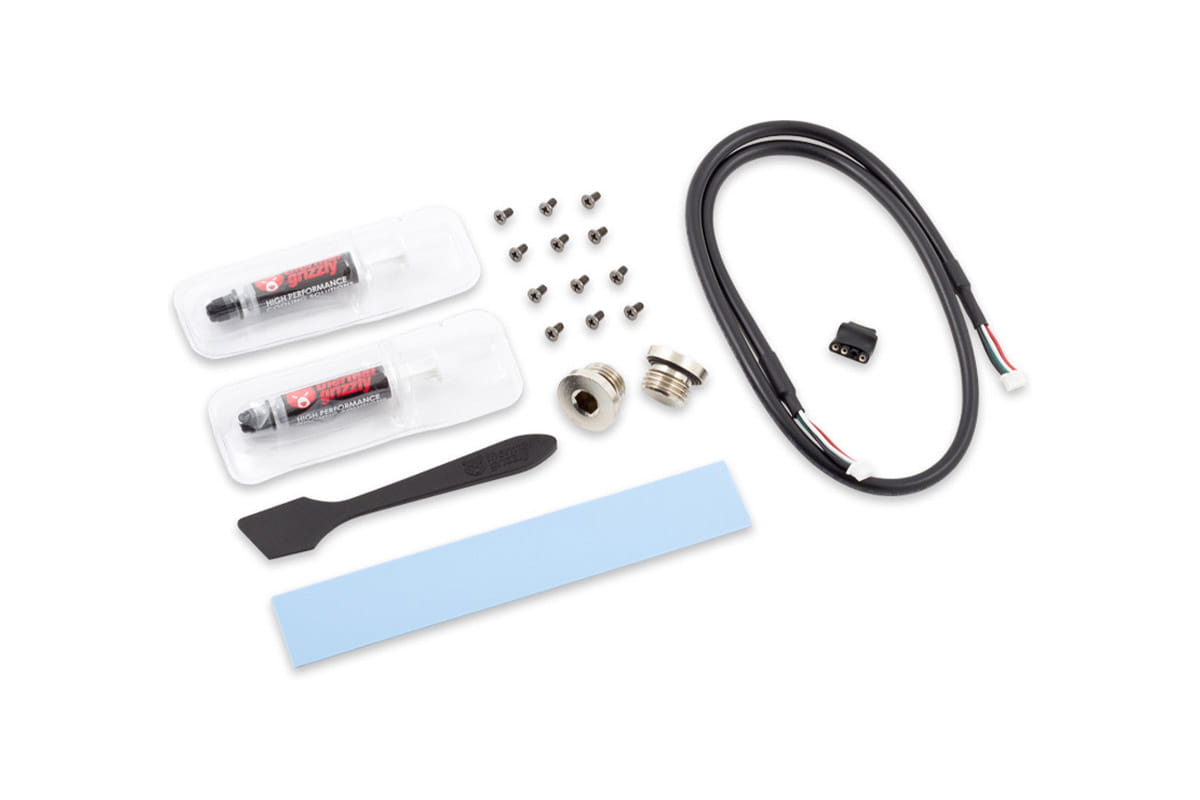

Scope of delivery:

• Water block without hose connectors (threads G1/4)
• Two G1/4 sealing screws
• Thermal compound Thermal Grizzly Kryonaut, approx. 1 gram in syringe
• Plastic spatula
• Thermally conductive pad
• Mounting material
• RGBpx connection cable 50 cm
• RGBpx adapter

Compatibility: Please check compatibility using the PDF from Aqua Computer under Awards and Documents.

Please note: Graphics card and fittings are not included in delivery, please order separately.
