Alphacool's Core product series is characterized by high quality, outstanding performance and... more
Product information

Alphacool's Core product series is characterized by high quality, outstanding performance and the uniform and functional design language.

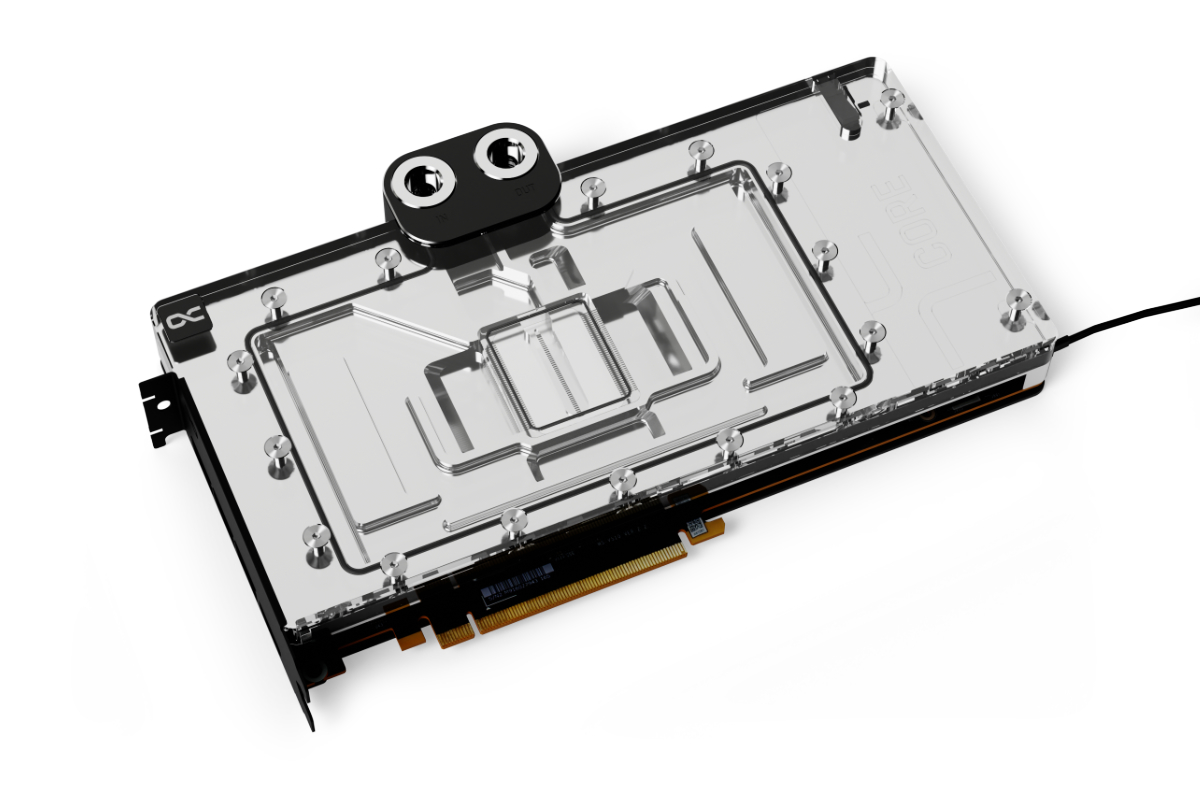

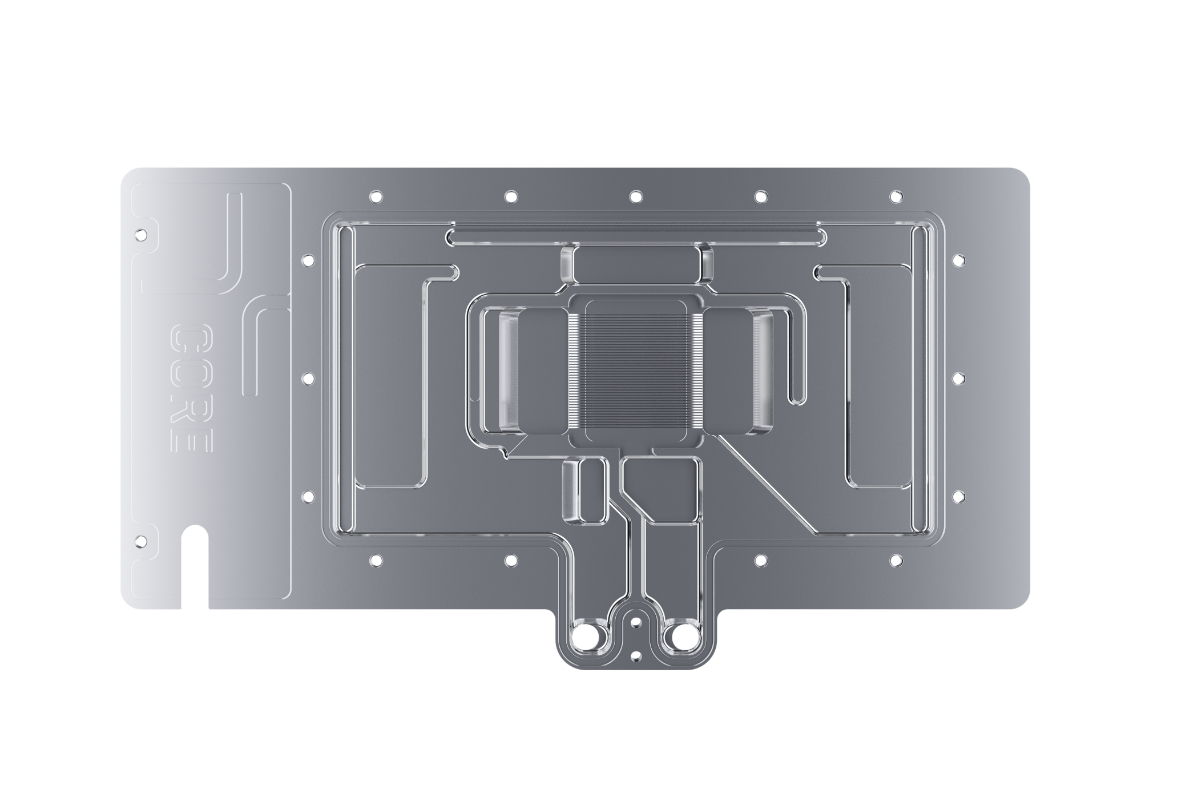

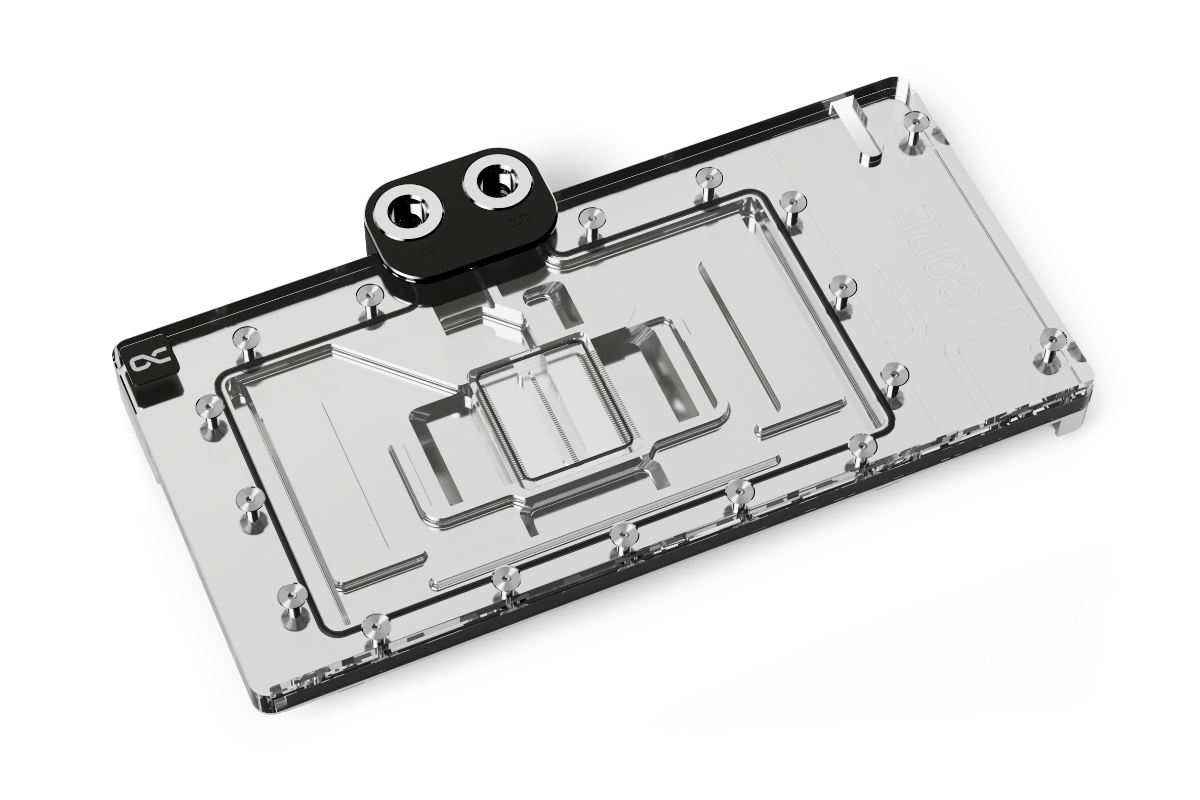

The copper cooler which, like the end terminal, is milled from a single piece of copper and is the core of this cooler. The fine workmanship, paired with the hard and resistant chrome plating covering the entire copper cooler, meet the highest quality standards. The chrome-plated brass G1/4" threads integrated on both sides stand out visually from the terminal. They are a central feature of the new design language that will be evident in all products in the Core series.

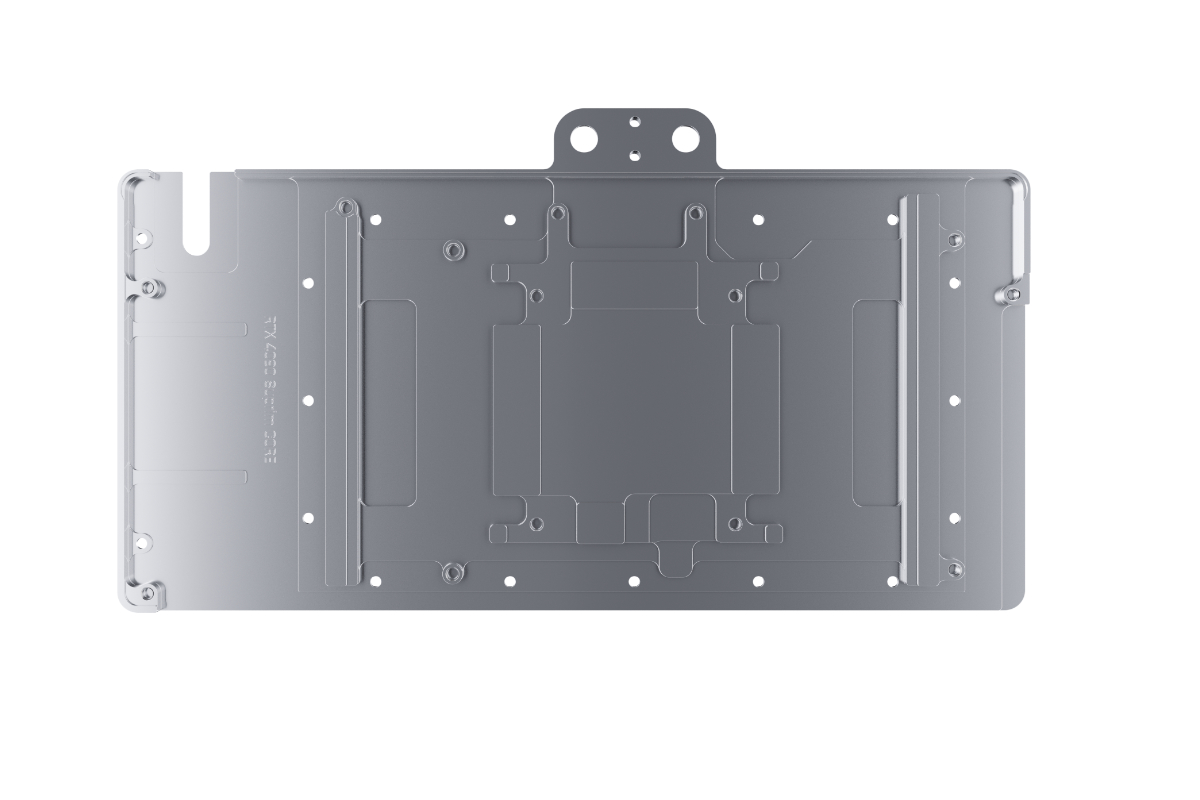

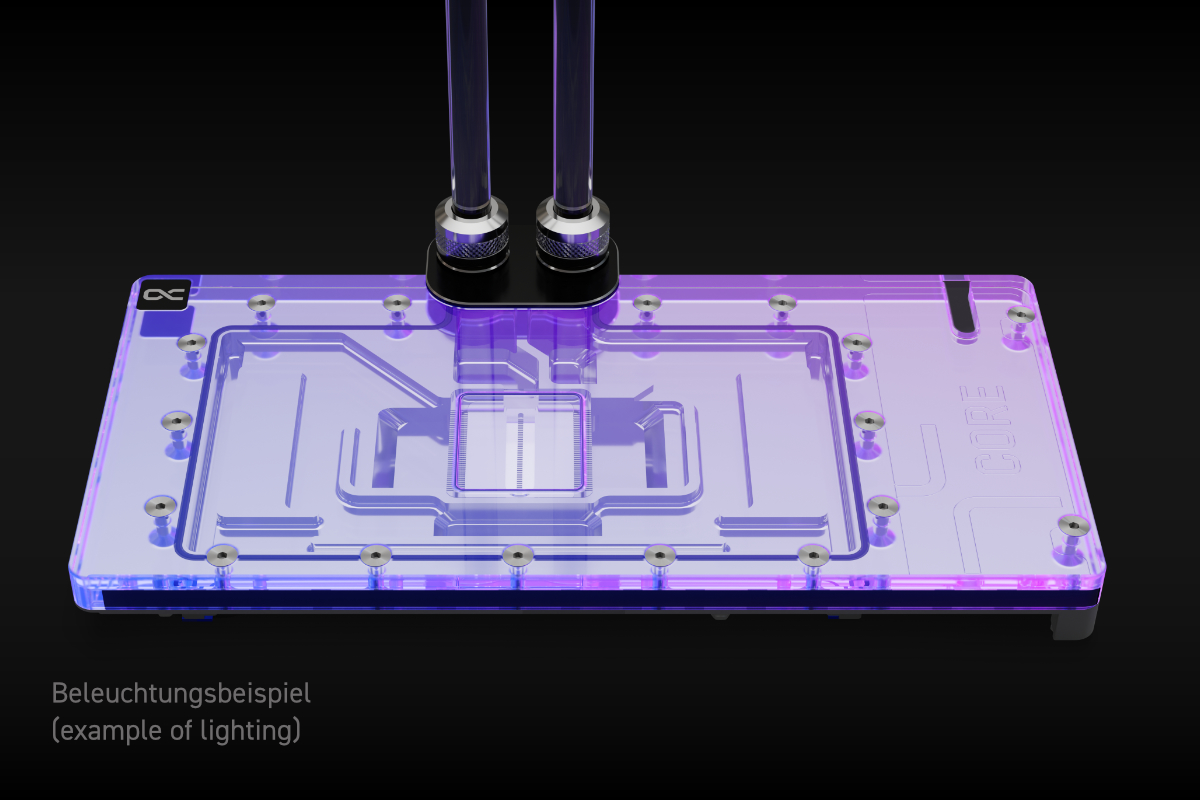

The aluminum backplate adapted to the design, together with the terminal, makes up the entire unit and enhances the back of the cooler with a clean and homogeneous look. The lighting consists of digitally addressable RGB LEDs, which illuminate the entire cooler evenly and effectively.

The technical advancements can be seen in the water supply to the jet plate as well as in the optimization of the jet plate itself. The jet plate has been completely redesigned based on many simulations and practical tests in cooperation with board partners. The fin thickness and spacing have been enhanced, the cooling surface has been increased and the water flow to the core components with the greatest heat output has been optimized. The enclosed special soft thermal pads with up to 7 W/mK adapt perfectly to even the smallest tolerances.



Compatibility:
- MSI GeForce RTX 4090 Gaming Trio 24G, 24GB GDDR6X
- MSI GeForce RTX 4090 Gaming X Trio 24G, 24GB GDDR6X (V510-006R)
- MSI GeForce RTX 4090 Suprim Liquid X 24G, 24GB GDDR6X
- MSI GeForce RTX 4090 Suprim X 24G, 24GB GDDR6X (V510-001R)



Technical data cooler
Dimensions (L x W x H)269,37 x 153,75 x 32,85mm
Material coolerchrome-plated copper
Material cooler topacrylic
Threads4 x G1/4"
Thickness cooler bottom11,3mm
Thickness cooling fins0,4mm
Distance cooling fins0,4mm
Illuminationdigital aRGB LEDs
Power connector digital aRGB LEDs3-Pin JST
Power digital aRGB LEDs5V
Number of digital aRGB LEDs16
Colortransparent

Technical data backplate
Dimensions (L x W x H)269,37 x 130,75 x 5mm
Materialaluminium
Colorblack

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Further links

Awards & Dokumente
Jetzt nützliche Details ansehen... more
Produktdetails
manufacturer: Alphacool
Hardware Hersteller: NVIDIA
SLI kompatibel: Ja
Kühlertyp: Komplettkühler
connector: 4x G1/4"
Material Deckel: Acryl
dimensions: 269,37 x 153,75 x 32,85mm
Material bottom plate: Kupfer
Hinweis: Kompatibel bis 16/13mm gerade, Kompatibel bis 19/13mm gewinkelt
Hardware Modell: RTX 4090
