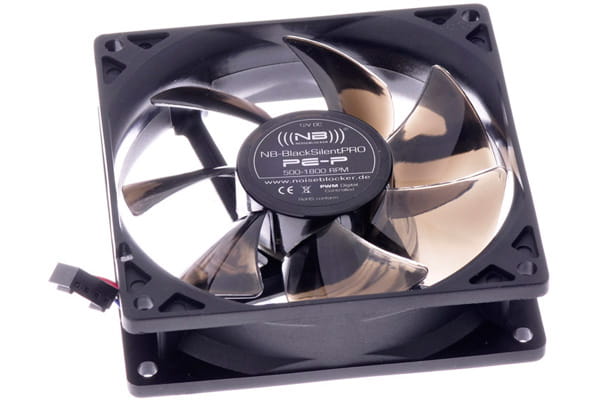

Noiseblocker NB-BlackSilent Pro PE-1 ( 92x92x25mm )
- Article no: 77340
- Manufacturer no: ITR-PE-1
- EAN: 4250051906233
- Weight: 0,14 kg
- Verfügbar:
ready for shipment in 1-3 days
Payment by instalments available between 400€ and 5000€ value of goods
Prices incl. VAT plus shipping costs
High-end in classic design
Developed with and for the most demanding customers, the new (((NB))) Premium fan series, equipped with classic frame and rotor, combines the NB-BlackSilentPro series technology with a classic design.
The high-grade NB-EKA Plus II drive system and the virtually inaudible NB-NanoSLI bearings ensure exceptionally quiet operation over the whole lifespan.
Both are features which before were only available in the highly sophisticated Multiframe reference series.
Besides the tasteful design in matte and high-gloss black, the BlackSilentPro fans feature individually expandable cable management and a NB-Silentframe silicone gasket as well as mounting material for vibration- and tool-free installation.
Quality designed in Germany!
Detailed information:
High-quality fibreglass reinforced chassis in classic deign with Antidust Polycarbonate rotor
Cable management, plug-in cables, 20+50cm combinable
Vibration- and tool-free mounting
Extremely low starting voltage
Pulse-noise reduced NB-EKAPLus II Wide range drive
Highest safety level:
Reverse polarity and overload protection, restarting functionality, extremely fail-safe
Virtually inaudible bearings
Highest quality:
Including mounting material and additional NB-Silentframe gasket
Technical specifications:
Dimensions: 92x92x25mm
Colours: Black frame, transparent brown fan blades
Nominal voltage: 12V
Starting voltage: 5V
Control range: 5-13.2V
Power consumption: 0.81W
Nominal speed: 1300rpm (+/- 10%)
Airflow: 42m³/h / 24,7CFM
Noise emissions: 14 dB(A)
MTBF (25°C): 180000hrs
Connector: 3-Pin
Extent of delivery:
1x Fan
Further links
Farbe Rahmen: | schwarz |
nominal voltage: | 12V DC |
Nenndrehzahlbereich: | 1000 - 1450 U/min |
LED: | nicht vorhanden [9] |
Airflow range: | 0 - 49 m³/h [1] |
Farbe Rotor: | braun |
power connection: | 3Pin |
RPM Signalübertragung: | Nein |
Lautstärkebereich: | 10 - 19,9 dB(A) |
Größe: | 92mm [7] |
Abmessungen: | 92 x 92 x 25mm |
Startspannung: | 5V DC |
Hersteller: | Noiseblocker |
Nenndrehzahl: | 1300 U/min |
Druck: | 1,40mm H2O |
volume: | 14 dB(A) |
Leistungsaufnahme: | 0,81W |
Luftförderleistung: | 42 m³/h |
Lebensdauer (bei 25°C): | 180.000 h |
